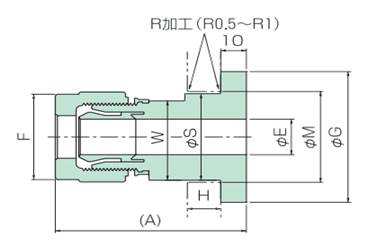

编码 | 适用尺寸 | 适用法兰 | A(mm） | φE (mm） | φG (mm） | φS (mm） | F(mm) | W(mm | φM (mm） | H(mm) |
R-UF-6A-15A | 6*4 | 10K-15A | 50 | 4 | 54 | 18 | 16 | 15 | 20 | 12 |
R-UF-6A-20A | 6*4 | 10K-20A | 50 | 4 | 54 | 18 | 16 | 15 | 20 | 14 |
R-UF-10B-15A | 10*8 | 10K-15A | 58 | 8 | 54 | 23.5 | 23 | 21 | 25.5 | 12 |
R-UF-10B-20A | 10*8 | 10K-20A | 58 | 8 | 54 | 23.5 | 23 | 21 | 25.5 | 14 |
R-UF-10B-25A | 10*8 | 10K-25A | 58 | 8 | 70 | 23.5 | 23 | 21 | 25.5 | 14 |
R-UF-10B-32A | 10*8 | 10K-32A | 58 | 8 | 70 | 23.5 | 23 | 21 | 25.5 | 16 |
R-UF-12B-15A | 12*10 | 10K-15A | 62 | 10 | 54 | 28.5 | 28 | 25 | 30.5 | 12 |
R-UF-12B-20A | 12*10 | 10K-20A | 62 | 10 | 54 | 28.5 | 28 | 25 | 30.5 | 14 |
R-UF-12B-25A | 12*10 | 10K-25A | 62 | 10 | 70 | 28.5 | 28 | 25 | 30.5 | 14 |
R-UF-12B-32A | 12*10 | 10K-32A | 62 | 10 | 70 | 28.5 | 28 | 25 | 30.5 | 16 |
R-UF-19B-15A | 19*15.8 | 10K-15A | 74 | 16 | 54 | 39 | 38 | 33.5 | 41 | 12 |
R-UF-19B-20A | 19*15.8 | 10K-20A | 74 | 16 | 54 | 39 | 38 | 33.5 | 41 | 14 |
R-UF-19B-25A | 19*15.8 | 10K-25A | 74 | 16 | 70 | 39 | 38 | 33.5 | 41 | 14 |
R-UF-19B-32A | 19*15.8 | 10K-32A | 74 | 16 | 70 | 39 | 38 | 33.5 | 41 | 16 |
R-UF-19A-40A | 19*15.8 | 10K-40A | 76 | 16 | 85 | 39 | 38 | 32.5 | 41 | 16 |
R-UF-25A-20A | 25*22 | 10K-20A | 89 | 22 | 59 | 46 | 47.5 | 42.5 | 48 | 14 |
R-UF-25B-25A | 25*22 | 10K-25A | 89 | 22 | 70 | 51 | 47.5 | 43 | 53 | 14 |
R-UF-25B-32A | 25*22 | 10K-32A | 89 | 22 | 70 | 51 | 47.5 | 43 | 53 | 16 |
编码 | 适用尺寸 | 适用法兰 | A(mm） | φE(mm） | φG(mm） | φS(mm） | F(mm) | W(mm | φM(mm） | H(mm) |
R-UF-W2A-15A | 1/4*5/32“ | 10K-15A | 50 | 4 | 54 | 18 | 16 | 15 | 20 | 12 |
R-UF-W2A-20A | 1/4*5/32“ | 10K-20A | 50 | 4 | 54 | 18 | 16 | 15 | 20 | 14 |
R-UF-W3A-15A | 3/8*1/4” | 10K-15A | 58 | 8 | 54 | 23.5 | 23 | 21 | 25.5 | 12 |
R-UF-W3A-20A | 3/8*1/4’ | 10K-20A | 58 | 8 | 54 | 23.5 | 23 | 21 | 25.5 | 14 |
R-UF-W3A-25A | 3/8*1/4“ | 10K-25A | 58 | 8 | 70 | 23.5 | 23 | 21 | 25.5 | 14 |
R-UF-W3A-32A | 3/8*1/4” | 10K-32A | 58 | 8 | 70 | 23.5 | 23 | 21 | 25.5 | 16 |
R-UF-W4A-15A | 1/2*3/8“ | 10K-15A | 62 | 10 | 54 | 28.5 | 28 | 25 | 30.5 | 12 |
R-UF-W4A-15A | 1/2*3/8” | 10K-20A | 62 | 10 | 54 | 28.5 | 28 | 25 | 30.5 | 14 |
R-UF-W4A-20A | 1/2*3/8“ | 10K-25A | 62 | 10 | 70 | 28.5 | 28 | 25 | 30.5 | 14 |
R-UF-W4A-25A | 1/2*3/8” | 10K-32A | 62 | 10 | 70 | 28.5 | 28 | 25 | 30.5 | 16 |
R-UF-W6A-32A | 3/4*5/8“ | 10K-15A | 74 | 16 | 54 | 39 | 38 | 33.5 | 41 | 12 |
R-UF-W6A-15A | 3/4*5/8“ | 10K-20A | 74 | 16 | 54 | 39 | 38 | 33.5 | 41 | 14 |
R-UF-W6A-20A | 3/4*5/8“ | 10K-25A | 74 | 16 | 70 | 39 | 38 | 33.5 | 41 | 14 |
R-UF-W6A-25A | 3/4*5/8“ | 10K-32A | 74 | 16 | 70 | 39 | 38 | 33.5 | 41 | 16 |
R-UF-W6A-32A | 3/4*5/8“ | 10K-20A | 76 | 16 | 85 | 39 | 38 | 32.5 | 41 | 16 |
R-UF-W8A-40A | 1*7/8“ | 10K-20A | 89 | 22 | 59 | 46 | 47.5 | 42.5 | 48 | 14 |
R-UF-W8A-25A | 1*7/8“ | 10K-25A | 89 | 22 | 70 | 51 | 47.5 | 43 | 53 | 14 |
R-UF-W8A-32A | 1*7/8“ | 10K-32A | 89 | 22 | 70 | 51 | 47.5 | 43 | 53 | 16 |
